Profiling Micro Boring Tool Tungsen Carbide Material For Mini CNC Lathe Machine

Product Categories

Shenzhen Chenri Precision Hardware Tools Co., Ltd.

Contact Now

Name: Profiling Micro Boring Tool Tungsen Carbide Material For Mini CNC Lathe Machine
Brand: Inrover
Price: 1 USD

Place of Origin : Shenzhen,China

Brand Name : Inrover

Model Number : MQR

Packaging Details : Plastic tubes+ Carton Box

Supply Ability : 30000pcs/month

Price : Please Contact Supplier

MOQ : 5

Payment Terms : T/T

Delivery Time : 5-15 days

Warranty : 3 years

Customized support : OEM, ODM, OBM

Usage : Internal Turning Tool

Hardness : HRC 91-93.5

Coating : To be defined, With or without coat, Nano coating

Type : Internal hole profiling boring tool

Material : Tungsen Carbide

Precision : ±0.005mm

Flute length : 10mm-30mm

Tip arc : R0.10-R0.15

Penetration depth : 0.60mm-1.20mm

Shank diameter : 4mm-6mm

Controlling Mode : Lathe Insert

Machining type : boring tool

Shank Type : Round shank

Port : shenzhen

Certification : ISO9001

Contact Now

High Efficient Carbide Cutters Profiling Boring Tools For Mini CNC Lathe Machine Accept OEM Internal Coolant Custom Tool

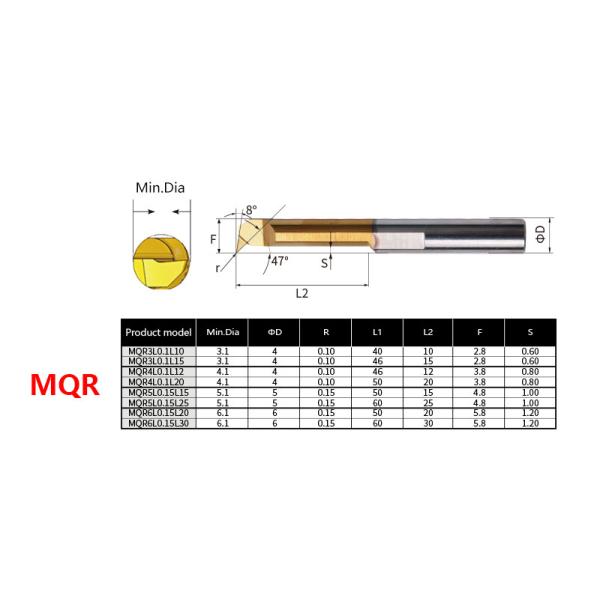

Specification

Profiling Micro Boring Tool Tungsen Carbide Material For Mini CNC Lathe Machine

Profiling Micro Boring Tool Tungsen Carbide Material For Mini CNC Lathe Machine

Type	Inner hole Profiling boring tool
Product name	MQR tungsten carbide Inner hole Profiling boring tool
Brand Name	INROVER
Material	Tungsten Carbide
Precision	±0.005mm
Coating	Nano coating
Weight of item(WT)	0.02kg
Machining type	Profiling and Boring Tool
Product color	gold
cutting depth	0.05-0.5mm
Feed rate	0.03-0.1mm/r
Linear velocity Vc	20-100m/min
Suitable for machine tools	CNC lathes, centering machines, cutter arranging machine skateboard lathes,turret lathes and other longitudinal lathes
Mainly suitable for machine tool brands	Swiss TORNOS lathe, Citizen, Nomura, Tsugami,Star,Miyano,etc
Product Features	1. Smooth chip evacuation and efficient machining
	2. The boring tool is integrally formed
	3. Imported machine tool precision grinding
	4. Nano coating is wear-resistant and durable
	5. Round shank design, tightly bonded, with internal coolant of INSIGHT tool sleeve, improve efficiency and service life, reduce

Rigorous quality inspection	1.Projector detection
	2.ZOLLER detection
	3.Swis edging
	4.German forging difference process detection
	5.Edge passivation detection
	6.Coreless grinding
